Location:- Southern Gulf of Siam – South China Sea
Registration:- American SS-371, Sunk 05/03/1945
Classification:- Balao Class Submarine
Specifications:- 1,526 tons. 311.8ft x 27ft. SS-371.
Depth:- 72meters in open ocean; An extremely challenging Trimix technical dive
“Lagarto’s Final Moments” – Video documentary
USS Lagarto formal identification photo’s and dive sketch produced August 2005.
Drawing copyright 2005 by Steve Burton www.thaiwreckdiver.com
Dive Site Classification:-
NOTE:- This is very much an allied ‘War Grave’ and remains the property of the US government. Diving activities are subject to USN permission. 86 allied servicemen (many of whose relatives I know personally) perished in the sinking. The crewmen’s bodies still lie entombed within her sealed compartments- No penetration or artifact recovery whatsoever is permitted. I will personally commence proceedings against anyone discovered to be desecrating this site.
Location:- N007.55.00 E102.00.00 (position approximate; USN Sources)
Method of sinking
Reported as probably sunk by Japanese minelayer HATSUTAKA in the Gulf of Siam. Believed lying in 30 fathoms of water. The Hatsutaka was herself sunk by the USS Hawksbill 12 days later.
‘used with permission’
Both the above photo’s courtesy of Dr Mike Gadd at http://www.drmike.smugmug.com email:- firstname.lastname@example.org
‘Used with permission’
Above photos Courtesy of Jim Christley. email:- email@example.com
Below is a conning tower shot of another Balao class submarine the USS Pampanito
shown here for comparison with the underwater shot above to assist in identifying this submarine type
Original painting of a Balao class sub by artist John Meeks available from http://www.subart.net. Used with permission.
John Meek’s sensitive work depicting WWII submarines from all nations may be viewed online in ‘Gallery-2’ of his web site http://www.skybirdart.com/
Click above photo to download original http://www.usni.org/ article
Laid down January 12th 1944 at Manitowoc Shipbuilding Co, Manitowoc. Launched May 28th 1944. Commissioned October 14th 1944
Andrews, H. D. CTM
Anker, C. CMOMM
Auchard, F. L. LTJG
Bjornson, C. H. F1
Breithaupt, C. W., Jr. Y2
Britain, W. L. CRMA
Brock, A. S2
Byrer, C. R. F1
Carleton, W. E. RM1
Cathey, L. F. MOMM3
Catozzi, S. G. QM3
Clouse, G. E. TM2
Cook, C. T. MOMM1
Davis, J. E., Jr. TM2
Doud, L. M. RM2
Enns, A. H. TM3
Fisher, R. L. MOMM1
Franze, J. J. S1
Frasch, O. R. MOMM1
Gerlach, J. N. F1
Grace, R. F. F2
Graves, W. QM1
Gray, D. J. EM2
Green, R. STM2
Gregorik, R. L. EM1
Gregory, J. P. S2
Halstead, G. E. RM3
Hardegree, T. MOMM1
Harrington, G. C. MOMM3
Harrington, T. J. MOMM2
Harris, J. B. S1
Harrison, J. C. MOMM3
Hinken, W. E. TM3
Honaker, W. F. EM3
Irving, L. G. LT
Jefferson, H. S1
Jobe, J. CEMA
Johnson, F. S1
Johnson, J. R. CEMA
Jordan, W. H., Jr. S1
Keeney, A. H., Jr. LT
Kimball, P. M. RT1
Kirtley, A. STM1
Kneidl, J. W. MOMM3
Latta, F. D. CDR
Lee, N. B., Jr. S1
Lee, R. W. F1
Lewis, R. J. MOMM2
Lynch, L. J. F1
Mabin, W. T. SM1
Marriot, J. M., Jr. S1
McDonald, J. H. SC2
McGee, J. M. TM2
Mendenhall, W. H. LT
Moore, W. L. F1
Moss, W. G. S1
O’Hara, L. R. RT2
Ortega, H. E. F1
Paper, D. M. S1
Pash, J. S. LTJG
Patterson, R. R. RM3
Perry, R. C. EM3
Peterson, J. W. TM3
Peterson, R. F. QM3
Phelps, W. B. LTJG
Plushnik, H. R. F1
Price, G. A. CMOMMA
Reeves, M. D. EM2
Reichert, R. E. F1
Robinson, E. T. BM1
Root, J. H. MOMM1
Ruble, R. T. LT
Rutledge, W. J. S1
Shackelford, W. C. SM2
Simmerman, R. E. TM2
Spalding, R. B. CPHMA
Stehn, J. E. GM2
Stiegler, D. G. EM2
St. John, U. M., Jr. EM3
Tait, F. MOMM2
Todd, H. A., Jr. LTJG
Turner, F. D. CGM
Wade, A. M. S1
Warnick, W. C. S1
Wicklander, M. M. MOMM2 Williams, J. L. S1
Missing USS-Lagarto Submarine discovered.
Written by Stephen Burton copyright 2006
‘One of many WWII wrecks recently identified in Thai waters by
Koh Tao Wreck Research Vessel MV Trident’
The Gulf of Siam with Bangkok as its hub, has been an important international seaway stretching back over millennia. Until recent years, trade routes into Thailand overland from all neighboring countries were tenuous at best. With either mountains, wide fast flowing rivers, or impenetrable jungles preventing all shipments by land larger than could be carried by pack mule.
Such was the situation that faced Japan following its invasion of Thailand in 1941. Just one railroad joined Thailand with Singapore and with transport aircraft being the only other viable means of logistical supply, the Gulf of Siam was busy with Japanese merchant vessels transporting the heavier items needed for the war effort, plus warships protecting their vulnerable cargo against the growing threat of allied submarine action.
Just how successful submarines were in destroying Japanese naval supply lines are given in these stark figures: – The US Navy’s WWII submarine force sank over 5 million tons of enemy shipping accounting for over 60 percent of all destroyed enemy tonnage.
But US submarines didn’t have it all their own way during the deadly cat and mouse game above and below the waves, and in all, 52 US submarines and over 3,500 sub crewmen lost their lives.
USS LAGARTO – LOST
Such was to be the fate of the USS-LAGARTO, when during a joint radio co-coordinated attack of a Japanese convoy with the submarine USS-BAYA on the 3rd May 1945, the Japanese escort minelayer HATSUTAKO recorded a depth charge attack on a US submarine in 30 fathoms (55 meters) of water. The BAYA was never able to re-establish radio communications with the LAGARTO and it is assumed that it was this attack that was responsible for her sinking. The ‘unusually alert’ HATSUTAKA crew was so vigilant in defending the convoy that it was also able to successfully drive the USS BAYA off.
That the HATSUTAKA was subsequently sunk 12 days later was not by accident. The captain of a nearby US submarine USS HARKBILL was a close friend of the LAGARTOS captain, he requested and was granted permission by COMSUBPAC to divert from his patrol orders for a revenge attack. 4 torpedoes were expended against the HATSUTAKA during a prolonged attack that lasted two days. A final lucky MK14 mod 3 torpedo fired from a distance of nearly 3 miles through an allied minefield, finally blew the HATSUTAKA into two pieces while an attempt was being made by Japanese naval forces to take her under tow for repairs caused by the damage from the HAWKBILL’s earlier attacks. No survivors of the HATSUTAKA’ s sinking permitted themselves to be rescued.
On May 7th 1995 on the 50th anniversary of the LAGARTO’ s sinking, Commander Vaughn from the Los Angeles class Nuclear submarine USS New York City laid a Wreath at the presumed final resting place of the USS-Lagarto.
The exact location where USS-Lagarto was attacked and sunk remained a mystery until 19th May 2005. When just after the 60th anniversary of her sinking, Koh Tao Divers Jamie Macleod & Stewart Oehl diving from the Koh Tao based shipwreck research vessel M.V. Trident descended a shot line in 73 meters of water to investigate an underwater anomaly rising some 15 meters from the seabed close to the LAGARTO’ s last reported position of N007.55, E102.00.
The shot line landed near to the bows of the LAGARTO, and on a day of uncharacteristically good visibility at these great depths, they stood on the bottom and gazed up at the distinctive massive outline of a Balao class submarine.
Any dive planned to a depth of 75meters should be made using Heliox or Trimix breathing gases so as to avoid both Oxygen Toxicity and Nitrogen Narcosis at this working depth. An actual Lagarto dive plan is shown below.
From the dive plan printouts, it’s interesting to note, that for only a 25minute bottom dive, the diver has to spend 1hr 14mins carrying out very formal mixed gas decompression. It took 4 dives of this type just to swim around all 4 quadrants of the wreck taking the notes and sketches that formed the basis of the analysis in this article. In accordance with the US navy permission for diving the LAGARTO, no penetration dives at all into the living quarters of the submarine were made, and no part of the wreck was disturbed in any way.
Unbelievably during a whole day of diving, A juvenile Whale Shark joined the dive team while waiting at their long decompression stops. Divers already on the surface quickly re-entered the water to snorkel with the gentle giant. For added fun and double-jeopardy a poisonous sea snake also swam near the group until it bumped into the lens of the (until then…) totally fearless video-grapher.
Survey Sketch Notes:- Steve Burton
I used a nice Helium Trimix breathing gas for these survey dives. The funny story is that the huge depth charge hole
and most of the features I detailed on the Lagarto sketch were not believed by the other divers present – most of whom were diving air mixtures.
even though I measured the port side depth charge damage with arm spans, used a measured line to enter the depression damage hole and outer ribs to detect if the inner crew pressure vessel had been compromised by the battle damage… I still had trouble convincing everyone.
Herein lies the Legend of helium….
“Dived it on Helium – remembered it.
Dived it on air – forgot it.”
Although the viz on the surface was a spectacular 30m plus, as the diver arrived at the submarine at around 60m depth, the viz deteriorated markedly.
I thought that Viz was sufficiently bad on my dives below the thermo cline, that I ‘reeled off’ from the conning tower for all 4 dives dives.
The thought of not making it back to the ascent line (and cover boat) after an hour or so of very formal deco followed by a very proper ‘lost at sea’
filled me with some dread. Yes, I am in fact ‘a pussy’.
The pictures and dive sketches show the 311ft long 1,500ton USS LAGARTO upright and in one piece. The sinking location lies in open ocean, and as would be expected for a dive so far out to sea, the surface visibility is excellent at around 50 meters plus. During this dive sequence, the tip of the LAGARTO’ s twin periscope tubes and conning tower pierced a silty thermo-cline that began from 60 meters and extended all the way down to the sea bed at 75 meters depth. Visibility below the thermo-cline was much reduced from that near the surface, but the wreck was still clearly visible as a submarine, even before divers reached the wreck.
During the 1st dive on the LAGARTO with over riding need to return to the ascent line so as to assure that our dive team didn’t become a ‘lost-at-sea statistics(again!) , our team ‘reeled out’ from the ascent line along the top surface of the wreck. This gave an indication of the massive size of the LAGARTO, since by the time we’d reached the bow, I’d used all of the 50meters of line on the reel.
Natural light still penetrated through the thermo-cline, but all divers were thankful of the high power technical diving torches which each diver carried with them, that gave illumination to the fine details of the wreck necessary when diving at these depths.
As Jamie’s Purple book of ‘net snag marks’ indicated, the LAGARTO has caused many fishing boats to loose their nets. These large football pitch sized nets cost upwards of USD25,000 each, and are not left on the bottom without a fight. All smaller sized items that protruded through the hull have been pulled off during attempts to wrestle free the nets, leaving only massive lumps of steel such as the conning tower, bow & stern planes, props, plus the twin 5 inch guns intact.

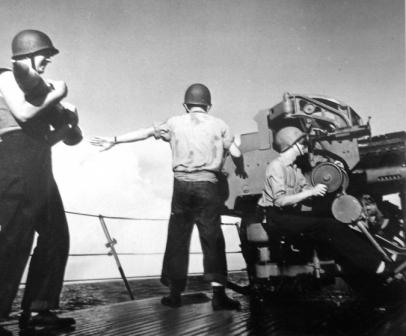

After each dive, it was possible to add more details to the dive sketch that would formally identify the USS LAGARTO. Unlike many other Balao class submarines, the LAGARTO had two 5-inch guns mounted in front of, and behind the conning tower. These were clearly visible mounted in a stowed position, which together with the wrecks location confirmed the identification.
A forward starboard torpedo door is open, and it’s possible to peer inside and confirm that it is empty. This suggests that the LAGARTO went down fighting and that a torpedo had been fired during her last moments. The rubber seals of the torpedo tube muzzle door are still in excellent condition even after 60 years underwater.
Sadly, also visible was the massive damage caused to the port quarter forward of the conning tower. The LAGARTO had plainly sustained a direct hit from a depth charge or other large explosive ordinance. The destruction caused by this device had been sufficient to entirely destroy the external steel plating that contained several large buoyancy compartments and then penetrate much further into the sub to punch a large hole through the 1 inch thick high tensile steel inner pressure bulk head that contained the crew’s living spaces.
All crew in the compartment adjacent to the damaged area would have perished instantly from the force of the explosion. Tons of water per second from the 55meters of water pressure would have rapidly entered these forward living spaces, throwing the sub off balance and negatively buoyant, and causing it accelerate rapidly nose down towards the sea bed. The subs external control planes are juxta-positioned; The foreword planes are set to the ‘dive’ position whereas the stern planes were set to ‘surface’. It may have been that with all the internal watertight doors closed, the stern compartments crews survived the initial explosion (as in the Russian Kursk submarine disaster on August 12th 2000), and that a desperate last ditch attempt was made to override the steep descent by blowing emergency buoyancy tanks and moving the aft control planes into the ‘ascend’ position from other emergency controls located aft. However, the weight of the flooded forward living spaces compounded with the destroyed forward buoyancy compartments was too much weight to overcome, and the sub stayed on the bottom.
Extract of the USS Lagarto’s co-operation with the USS Hawkbill. Courstesy of the Wisconsin Maritime Museum newsletter, http://www.wisconsinmaritime.org/
Diving the USS LAGARTO – A War Grave
The USS LAGARTO submarine is a restricted war grave. 86 American servicemen lost their lives during the sinking, and as such, she is being treated with the utmost respect which she deserves.
The Lagarto lies far out to sea, in very deep water that would prove lethal if dived breathing air. Only a hand full of people in the Far East (all known to each other) have the pre-requisite skills and financing to execute a dive to the Lagarto breathing ultra expensive Helium based Trimix… and come back alive. Thus mass tourism or casual vandalism by recreational divers to the Lagarto’s final resting place is highly un-likely.
Like all submarines, the USS Lagarto was expensive to produce, utilizing 250 ton of lead batteries, tons of bronze, copper and other non-ferrous materials for her weapons and propulsion systems, meaning that although the salvage value of a submarine in current monetary values could run to several hundred thousand dollars, her extreme depth and the complexity of any Helium saturation diving techniques necessary to facilitate any worthwhile salvage would make any commercial recovery attempts unviable.
She is currently being researched and documented by MV Trident’s team with the permission of the US Navy’s Naval Historical Center. The exact location of the Lagarto remains a closely guarded secret.
